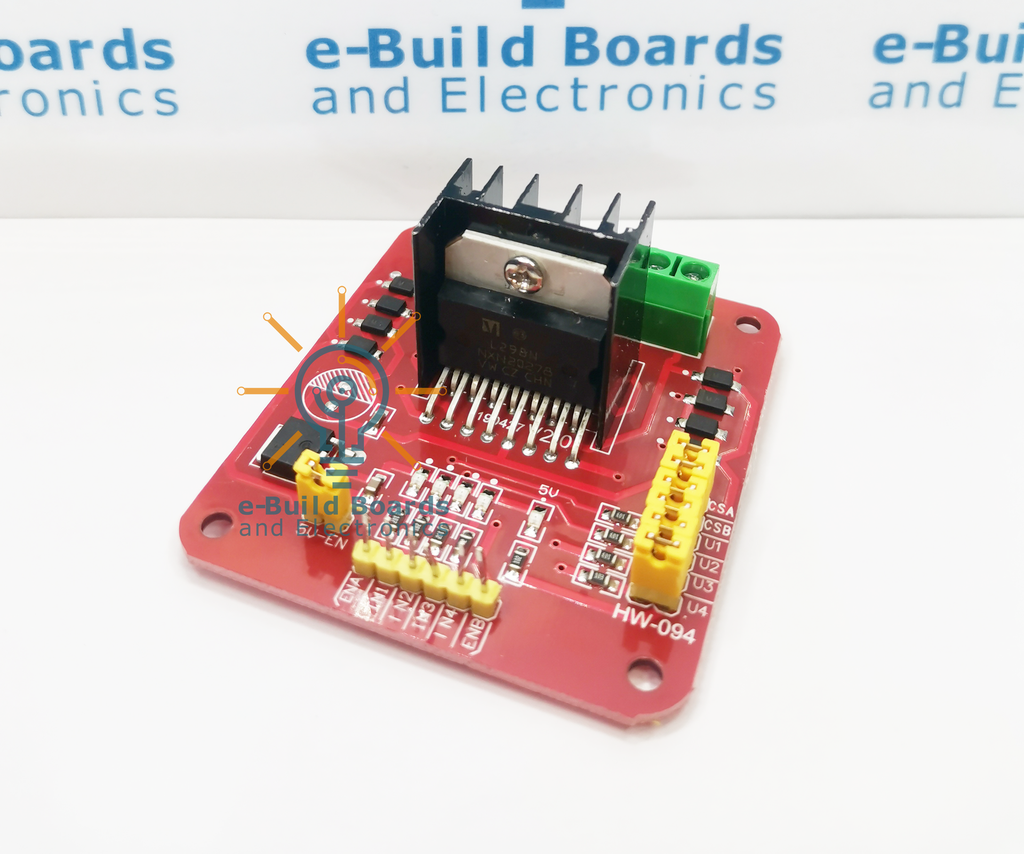

Stepper Motor Driver L298N Dual H-Bridge HW-094 Module

Stepper Motor Driver L298N Dual H-Bridge HW-094 Module

The L298N Motor Driver Module is a high voltage Dual H-Bridge manufactured by ST company. It is designed to accept standard TTL voltage levels. H-bridge drivers are used to drive inductive loads that requires forward and reverse function with speed control such as DC Motors, and Stepper Motors. This Dual H-Bridge driver is capable of driving voltages up to 46V and continuous current up to 2A in each channels.
Note: Adequate cooling should be installed when using the driver at its maximum capacity.

Specifications
✅Driver: L298 Dual H Bridge DC Motor Driver IC
✅Operating Voltage: 7 to 35V
✅Peak current: 2A
✅Maximum power consumption: 20W (when the temperature T = 75 °C)
✅Driver Board Size: 55mm * 49mm * 33mm (with fixed copper pillar and the heat sink height)
✅Driver Board Weight: 33g
