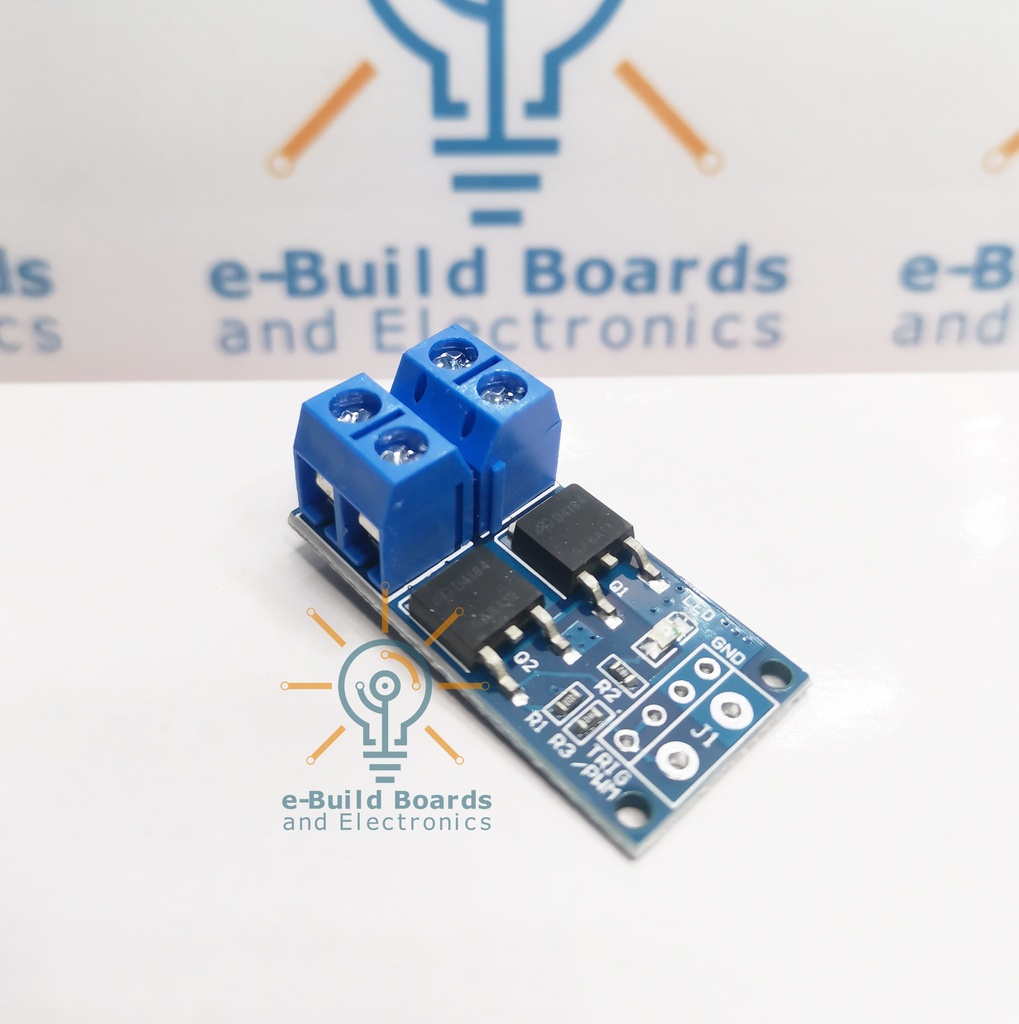

Mosfet Switch Drive Module, 15A 400W

High Power 15A 400W MOS FET Trigger Switch Drive Module PWM Regulator Electronic Switch Control Panel DC 5V-36V

Module Highlights:
1. Dual MOS parallel active output, lower internal resistance, greater current, power is strong, at room temperature 15A, 400W, to meet the use of most of the equipment;
2. Wide voltage, support PWM;
3. Easy to achieve high-power equipment control.

Product parameters and applications:
1: Operating voltage: DC 5V - 36V;
2: trigger signal source: digital high and low level (DC3.3V - 20V), you can access the microcontroller IO port, PLC interface, DC power supply, you can connect the PWM signal, the signal frequency 0--20KHZ perfect support.
3: Output capacity: DC DC 5V - 36V, continuous current at room temperature 15A, power 400W! Under the auxiliary heat dissipation condition, the maximum current can reach 30A.
4: Application: The output can control the high-power equipment, motor, bulb, LED lamp, DC motor, micro-pump, solenoid valve, you can input PWM, control motor speed, lamp brightness.
5: Service life: unlimited switch; Operating temperature: -40-85 °; Size: 3.4 * 1.7 * 1.2cm
