Line Tracking Sensor Module 3 Channel

Line Tracking Sensor Module 3 Channel

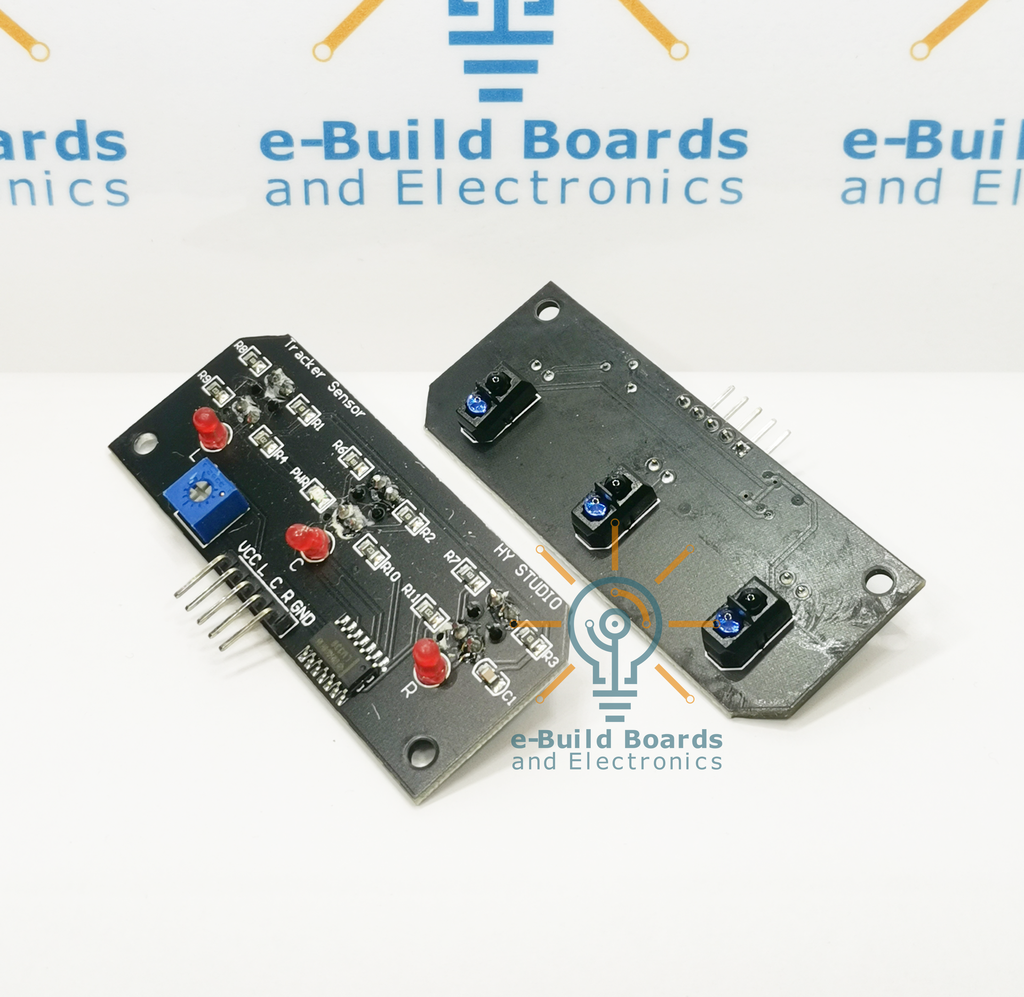

3 Channel Line Tracking Sensor Module(BFD-1000)
- is a sensor board designed for use with line follower robots. This module has been sufficient to meet the day-to-day task of tracking, but also with the infrared distance sensor and touch detection sensor, the board makes your robot design able to adapt to the situation easily.

BFD – 1000 specifically designed as a black line (white), especially suitable for the complex of the black and white line, cross black and white line detection, it has 6 roads high sensitivity infrared sensor (3 escapes patrol, 1 road), to the recognition of black and white line accurately.

General Specifications:
✅3 channel high sensitivity sensor
✅High accuracy for tracking black line.
✅Distance sensor at the front, distance can be adjusted
✅Special touch sensor design, making the robot design simple
✅Digital output signal
✅Indicator LEDs

Technical Specifications:
✅Detection distance: 0 – 4 cm (black and white line sensors), 0 – 5 cm (adjustable distance detection)
✅Input voltage: 3.0 V – 5.5 V
✅Output form: digital output (high and low level)
