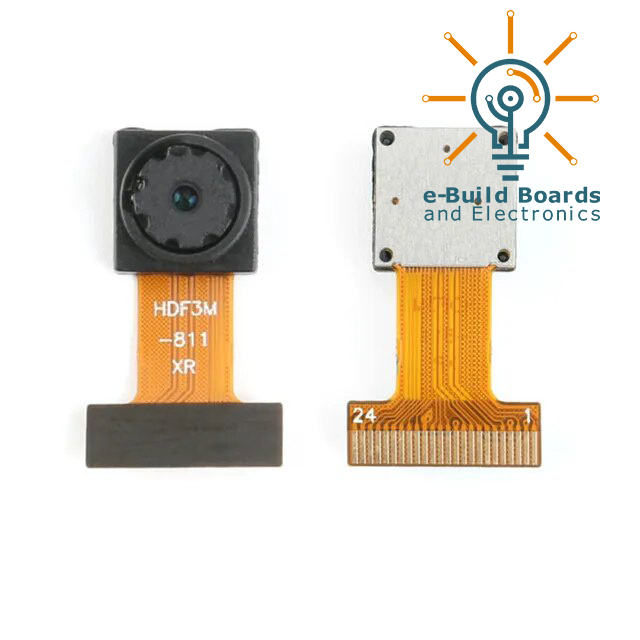

ESP32 OV2640 Camera Module

✅ESP32 OV2640 Camera Module CMOS Image Sensor Module 2 Million Pixel Wide Angle Camera Monitor Identification Lens For Arduino

✅Product Features:
The OV2640 is a 1/4-inch CMOS UXGA (1632*1232) image sensor. The sensor's small size and low operating voltage provide all the features of a single UXGA camera and image processor.
Through the SCCB bus control, it can output 8/10-bit image data of various resolutions such as full frame, sub-sampling, zooming and windowing. The UXGA image of this product can reach up to 15 frames per second (up to 30 frames for SVGA and 60 frames for CIF). Users have complete control over image quality, data format and transmission.
All image processing functions including gamma curve, white balance, contrast, chroma, etc. can be programmed via the SCCB interface. Image Sensors use unique sensor technology to improve image quality and reduce sharp and stable color images by reducing or eliminating optical or electronic defects such as fixed pattern noise, smearing, and floating.

Note: This camera module only leads to some pins of the CSP package sensor chip and an optical lens. Without integrated peripheral components, it needs to be designed by itself.
