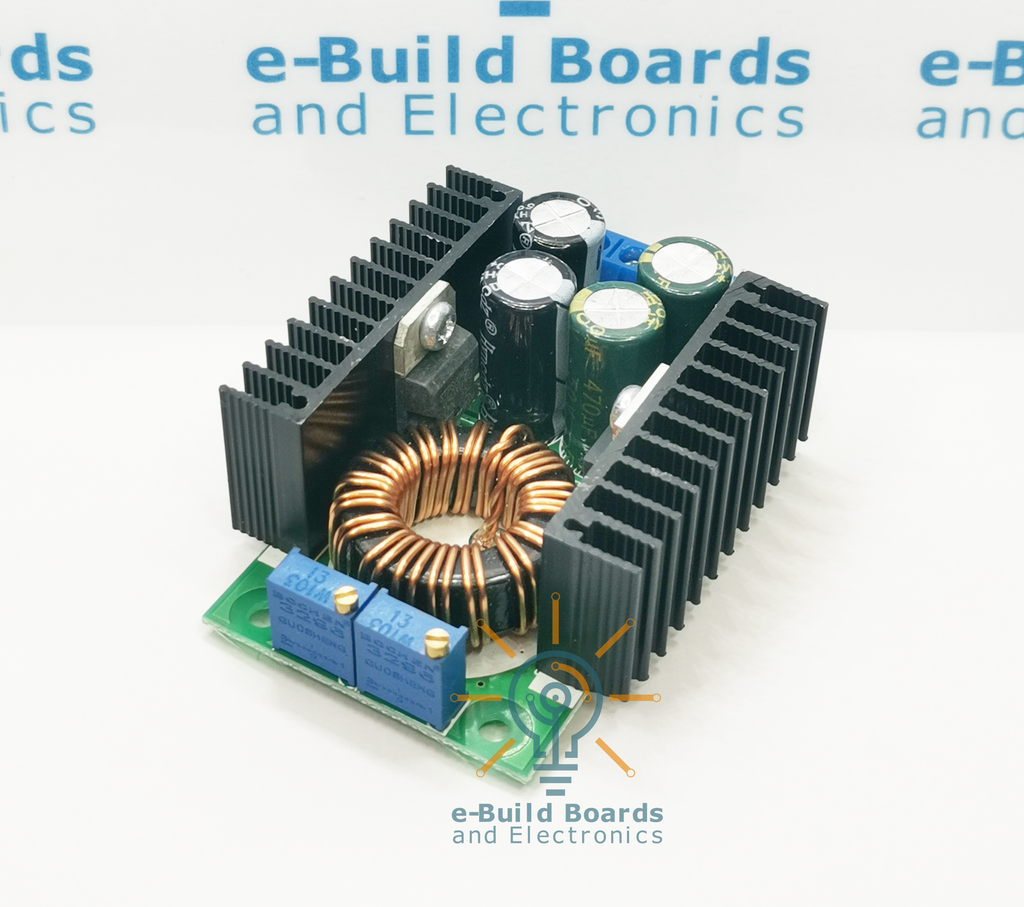

DC-DC Buck Converter XL4016 Module Adjustable

XL4016 DC-DC Buck Converter Module Adjustable

Adjustable +0.8 to 28vdc output, 8A. Ideal for battery operated projects requiring a higher current regulated power supply. These modules use the XL4016 DC-DC converter IC, and applications include LED drivers, battery chargers, or a regulated power supply.

Specifications:
✅Module Properties: non-isolated step-down constant current, constant voltage module (CC CV)
✅Output Voltage: DC 0.8-28V continuously adjustable
✅Efficiency: Up to 95% ( when output voltage is set high )
✅Protection: Short circuit current limiting, thermal shutdown
✅Load Regulation: +/- 1%
✅Voltage Regulation: +/- 1%
✅Temperature: 40 to +85 deg C ( output power less than 10Watts )
✅Size: 65 x 36 x 23 mm
✅Weight: 65.5 g
