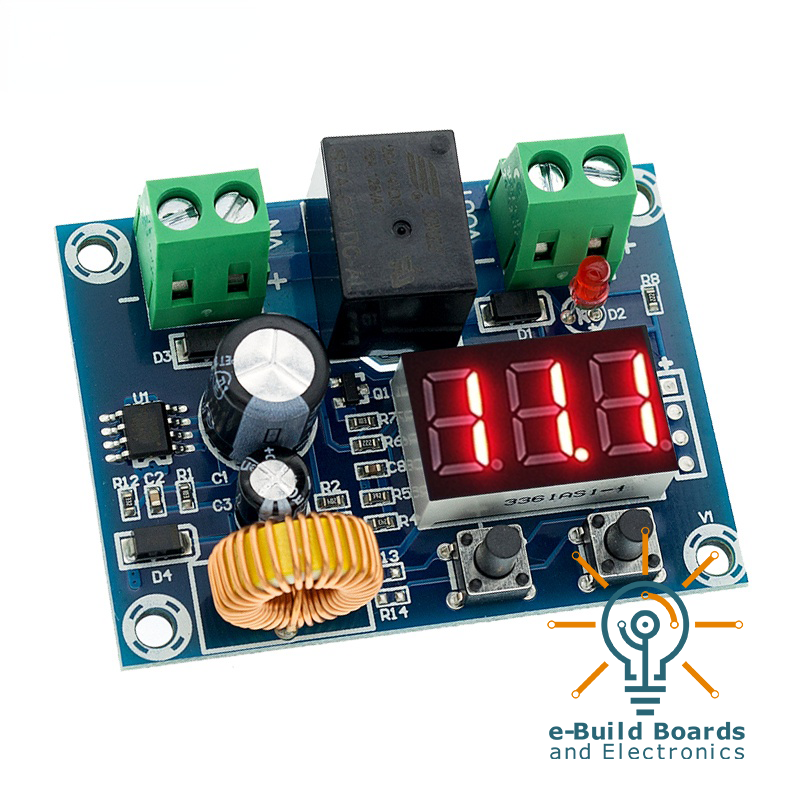

Battery Low Voltage Disconnect Module

✅XH-M609 Low Voltage Disconnect Switch Cut Off 12V 24V 36V Digital LED Display Over-Discharge Protect for 12-36V Lithium Battery

✅Description:
1. Name: Battery over-discharge protection module
2. Model: XH-M609（HCW-M635）
3. Input voltage: DC12-36V
4. Display accuracy: 0.1V
5. Control accuracy n: 0.1V
6. Voltage error: +/-0.1V
7. Scope of application: 12-36 lithium battery
8.The output voltage is equal to the input voltage
9. Product size: 57*42*19mm

- Programmable battery low voltage disconnect switch for DC 12-36V lead acid battery and lithium ion battery. It's a protection switch module, not included batteries itself.
- On-board momentary push button to set the low voltage disconnect parameter and 3 digit red LED display the parameter easy to operation
- When the battery voltage reach the setting values, the module will disconnect load automatically to avoid the battery from over discharging to prolong the battery lifetime
- Display is accurate, the switch module is quickly to open and close when near minimum voltage; Settings is stored non-volatile, it can keep set when power off.

✅Specifications:
- Input Voltage Range: DC 12-36V
- Control Accuracy: 0.1V
- Compatible Battery: lead acid, lithium ion battery, solar panel battery
- Board Size: 57 X 42 X 19mm (L*W*H)
