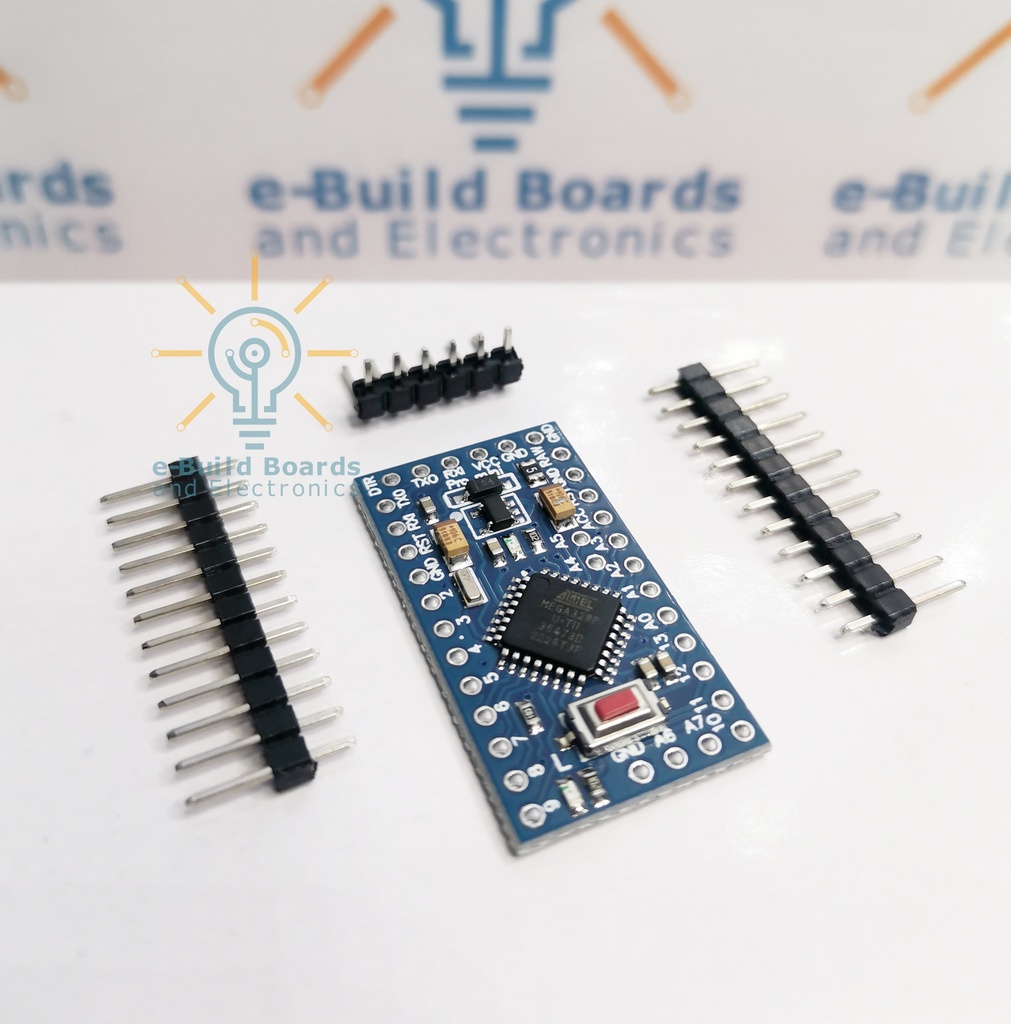

Arduino Pro Mini 328 3.3V 8Mhz

Arduino Pro Mini 328 – 3.3V 8MHz

The Arduino Pro Mini is a microcontroller board based on the ATmega328 (datasheet). It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, an on-board resonator, a reset button, and holes for mounting pin headers.
This board connects directly to the FTDI Basic Breakout board and supports auto-reset. The Arduino Pro Mini also works with the FTDI cable but the FTDI cable does not bring out the DTR pin so the auto-reset feature will not work. There is a voltage regulator on board so it can accept voltage up to 12VDC. If you’re supplying unregulated power to the board, be sure to connect to the “RAW” pin and not VCC.
The latest and greatest version of this board breaks out the ADC6 and ADC7 pins as well as adds footprints for optional I2C pull-up resistors!
Note: You will need a USB to Serial Converter to program the Arduino Pro Mini

Specifications:
✅ATmega328 running at 16MHz with external resonator (0.5% tolerance)
✅0.8mm Thin PCB
✅USB connection off board
✅Supports auto-reset
✅3.3V regulator
✅Max 150mA output
✅Over current protected
✅Weighs less than 2 grams!
✅DC input 3.3V up to 12V
✅On board Power and Status LEDs
✅Analog Pins: 8
✅Digital I/Os: 14
✅Dimensions: 0.7×1.3″ (18x33mm)
